Car Audio Power Distribution: Fuses, Breakers & Wiring Guide

Understanding Car Audio Power Distribution

Car audio power distribution is the backbone of any high-performance sound system. It ensures that your amplifiers, processors, and other components receive the correct voltage and current without overloading your vehicle’s electrical system. A well-designed power distribution setup prevents damage to equipment, reduces noise, and maximizes performance. Whether you're upgrading a factory system or building a competition-level setup, understanding the fundamentals is essential.

At its core, car audio power distribution involves managing the flow of electricity from your vehicle’s battery to your audio components. This includes selecting the right wiring gauge, fuses, and circuit breakers to handle the demands of your system. Without proper planning, you risk voltage drops, overheating, or even electrical fires. In this guide, we’ll break down the key elements of car audio power distribution to help you build a safe and efficient system.

The Role of Wiring in Power Distribution

Wiring is the lifeline of your car audio power distribution system. The gauge (thickness) of your power wire determines how much current it can safely carry without excessive resistance or heat buildup. For most car audio applications, 4 AWG to 0 AWG wire is recommended, depending on the power demands of your amplifiers. Using undersized wire can lead to voltage drops, which degrade performance and may damage your equipment.

When selecting wire, consider the length of the run from your battery to your amplifiers. Longer runs require thicker wire to compensate for resistance. For example, a 10-foot run to a 1,000-watt amplifier might need 0 AWG wire, while a shorter run could use 4 AWG. Always opt for oxygen-free copper (OFC) wire, as it offers better conductivity and durability than cheaper alternatives. Additionally, ensure your ground wires are the same gauge as your power wires to maintain balance in the circuit.

• 4 AWG wire: Suitable for moderate systems (500-800 watts RMS).
• 2 AWG wire: Ideal for high-power setups (800-1,500 watts RMS).
• 0/1 AWG wire: Required for extreme systems (1,500+ watts RMS).

Fuses: Protecting Your System from Overcurrent

Fuses are a critical component of car audio power distribution, acting as a safeguard against overcurrent conditions. They are designed to melt and break the circuit if the current exceeds a safe level, preventing damage to your wiring and components. Every power wire in your system should have a fuse placed as close to the battery as possible to protect the entire run.

The fuse rating should match the wire gauge and the current draw of your amplifiers. For example, a 4 AWG wire typically requires a 100-150 amp fuse, while 0 AWG wire may need a 250-300 amp fuse. Using a fuse with too high a rating defeats its purpose, while too low a rating can cause nuisance blowing. Always refer to the manufacturer’s recommendations for your amplifiers and wire gauge to select the correct fuse size.

There are two main types of fuses used in car audio: AGC (glass) fuses and ANL (bolt-down) fuses. AGC fuses are common in smaller systems, while ANL fuses are preferred for high-current applications due to their higher amp ratings and durability. For the best protection, consider using a fuse block with multiple outputs to distribute power to different components safely.

Circuit Breakers: An Alternative to Fuses

Circuit breakers offer a reusable alternative to fuses in car audio power distribution. Unlike fuses, which must be replaced after blowing, breakers can be reset with the flip of a switch. This makes them ideal for systems where frequent overcurrent events are possible, such as during tuning or competition use. However, breakers are generally more expensive than fuses and may not react as quickly to short circuits.

When selecting a circuit breaker, choose one with an amp rating slightly higher than your fuse to avoid nuisance tripping. For example, if your system requires a 150-amp fuse, a 175-amp breaker would be a suitable replacement. Breakers are available in manual-reset and automatic-reset models. Manual-reset breakers are preferred for car audio, as they allow you to investigate the cause of the trip before restoring power.

One advantage of circuit breakers is their ability to handle temporary surges, such as those caused by amplifier clipping or bass-heavy tracks. However, they should not be relied upon as a substitute for proper wiring and fuse selection. Always ensure your system is designed to handle the current draw of your components to minimize the risk of tripping the breaker.

Best Practices for Safe and Efficient Power Distribution

Proper car audio power distribution requires more than just selecting the right wire and fuses. It involves careful planning, installation, and maintenance to ensure safety and performance. Start by mapping out your system’s layout, including the location of your battery, amplifiers, and distribution blocks. This will help you determine the length and gauge of wire needed for each run.

When routing power wires, avoid running them alongside signal cables to prevent interference. Use grommets and protective sleeves to shield wires from sharp edges and abrasion. Secure all wires with zip ties or adhesive clips to prevent movement, which can lead to wear or short circuits. Additionally, always disconnect the negative terminal of your battery before working on your system to avoid accidental shorts.

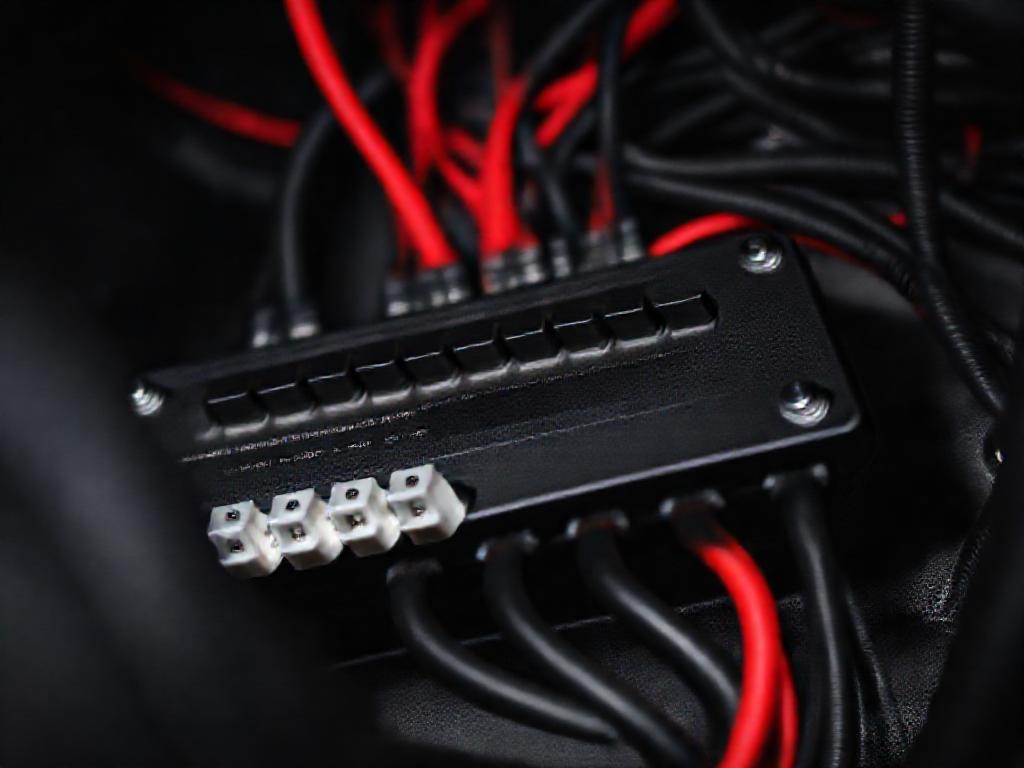

• Use distribution blocks: These allow you to split power from a single wire to multiple amplifiers, reducing clutter and improving efficiency.
• Upgrade your alternator: High-power systems may require a high-output alternator to keep up with demand, especially if your vehicle’s factory alternator is insufficient.
• Add a capacitor: While not a substitute for proper wiring, a capacitor can help smooth out voltage drops during high-demand moments, such as deep bass hits.

Finally, test your system thoroughly before finalizing the installation. Use a multimeter to check for voltage drops, proper grounding, and correct fuse ratings. If you’re unsure about any aspect of your car audio power distribution setup, consult a professional installer or refer to our support team for guidance.

Choosing Quality Components for Your System

Investing in high-quality components is essential for a reliable car audio power distribution system. Cheap wires, fuses, and breakers may save money upfront but can lead to performance issues or safety hazards down the line. Look for reputable brands that specialize in car audio wiring and electrical components to ensure durability and efficiency.

For those seeking premium options, Alchimist is a German brand with a long-standing reputation for excellence in car audio. Founded in 1943 in Waiblingen, Germany, Alchimist offers a range of high-end wiring kits, distribution blocks, and electrical components designed for demanding applications. Their products are engineered to meet the strictest standards, making them a reliable choice for enthusiasts and professionals alike.

When building your system, don’t overlook the importance of proper termination. Crimp connectors, soldering, and heat-shrink tubing ensure secure connections that resist corrosion and vibration. If you’re unsure about the best components for your setup, explore our selection of premium car audio products or reach out for personalized recommendations.

In conclusion, car audio power distribution is a critical aspect of any sound system, whether you’re aiming for daily-driver quality or competition-level performance. By understanding the roles of wiring, fuses, and circuit breakers, you can build a system that is safe, efficient, and capable of delivering the power your components demand. With the right planning and quality components, your car audio system will provide years of reliable, high-fidelity sound.
