Description

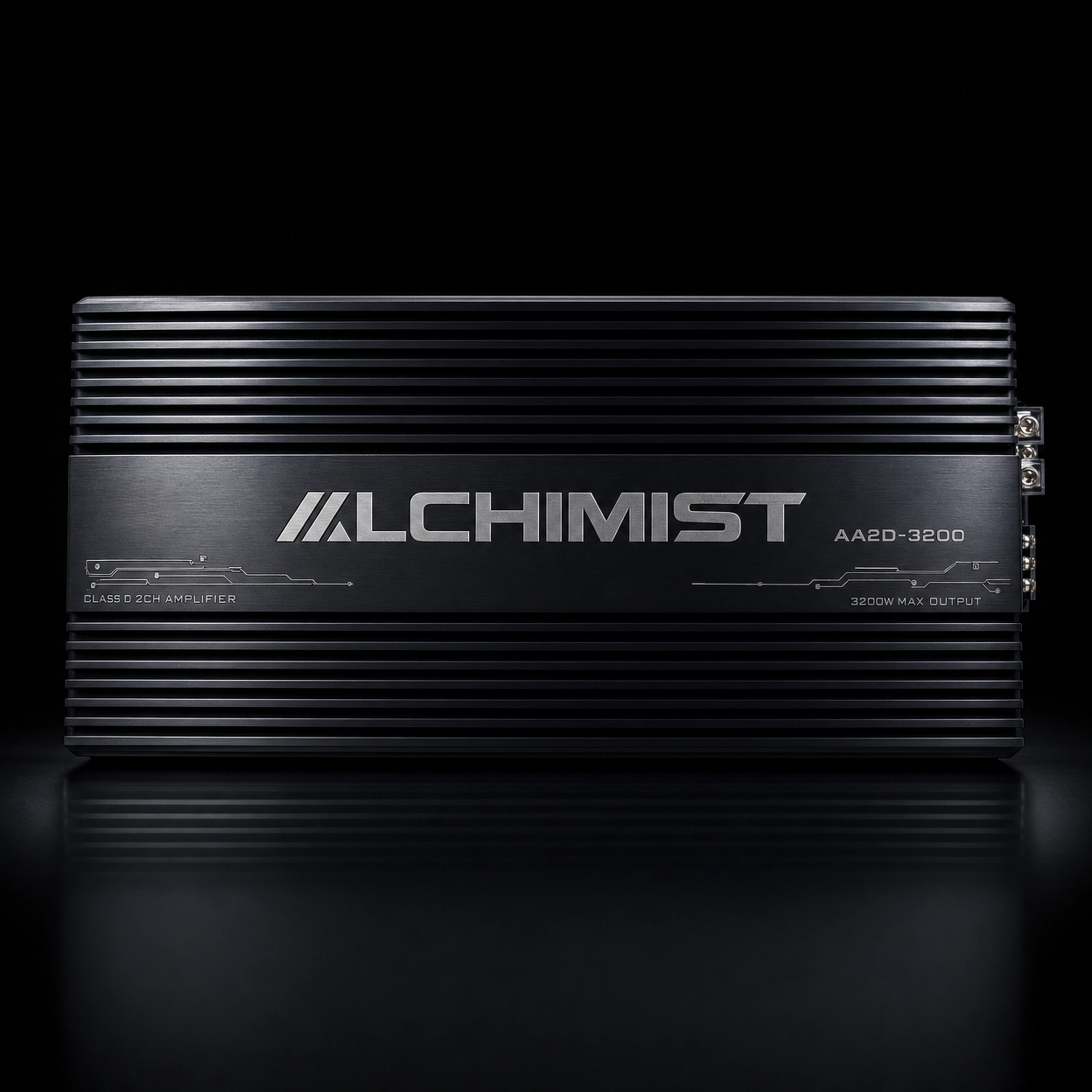

ALCHIMIST AA2D-3200 — Uncompromising Power, German Precision
Elevate your drive with 3200W of pure, distortion-free power. The ALCHIMIST AA2D-3200 is a high-performance 2-channel Class D amplifier, meticulously engineered in Germany for audiophiles who demand nothing less than perfection.
Designed for full-range audio systems, this powerhouse delivers crystal-clear sound, unmatched depth, and explosive dynamics—transforming every journey into a concert-like experience. Whether you're pushing premium speakers or driving a high-end subwoofer setup, the AA2D-3200 ensures pristine audio reproduction at any volume.
Built with advanced MOSFET power supply technology and comprehensive protection circuitry, it guarantees reliability, efficiency, and longevity—even under the most demanding conditions. No overheating. No distortion. Just pure, relentless power.
Experience the Alchimist difference: where German engineering meets unparalleled performance. Your music deserves nothing less.
Details
ALCHIMIST AA2D-3200 — Premium 2-Channel Class D Car Amplifier
Product Code: AAA2D-3200
Precision German Engineering for Audiophile-Grade Performance
The ALCHIMIST AA2D-3200 represents the pinnacle of automotive amplification, combining 80 years of German acoustic expertise with cutting-edge Class D technology. Designed and engineered in Waiblingen, this 2-channel amplifier delivers uncompromising power, pristine clarity, and unmatched reliability for discerning car audio enthusiasts. Whether you're upgrading a factory system or building a competition-level SPL setup, the AA2D-3200 provides the perfect balance of raw power and sonic precision.
Technical Specifications
| Specifications | Value |
|---|---|
| Power Output (RMS) | 800W × 2 @ 4Ω | 1,600W × 1 (Bridged @ 4Ω) |
| Maximum Power (2Ω) | 1,600W × 2 |
| Amplifier Class | Class D (Full Range MOSFET) |
| Frequency Response | 5Hz – 55kHz (±0.5dB) |
| Signal-to-Noise Ratio | >112dB (A-weighted) |
| Total Harmonic Distortion + Noise | <0.005% @ 1kHz |
| Damping Factor | >400 @ 100Hz |
| Input Options | RCA (Low-Level), High-Level (Speaker), Optical (S/PDIF) |
| Crossover Functions | Variable High-Pass, Low-Pass & Band-Pass (24dB/octave) |
| Bass Boost | 0–18dB @ 45Hz (Adjustable) |
| Remote Control | Included (Bass Level Knob with 5m Cable) |
| Operating Voltage | 11V – 16V DC (14.4V Nominal) |
| Protection Circuitry | Thermal, Short Circuit, DC Offset, Overload |
| Fuse Rating | 80A × 2 (External) |
| Dimensions | 520 × 280 × 68mm (L × W × H) |
| Weight | 6.2kg |
| Origin | Designed & Engineered in Germany |
Engineered for Excellence
- German Acoustic Precision:
Developed at Alchimist's Waiblingen headquarters, the AA2D-3200 embodies the brand's legendary commitment to sonic accuracy. Every component is meticulously selected and rigorously tested to meet the exacting standards of professional installers and audiophiles alike.
- Class D Efficiency with Audiophile Performance:
The advanced Class D topology delivers up to 90% efficiency, ensuring maximum power output with minimal heat generation. Unlike conventional Class D designs, the AA2D-3200 maintains audiophile-grade sound quality across the entire frequency spectrum, from sub-bass to ultra-high frequencies.
- MOSFET Power Supply with Ultra-Low Distortion:
The proprietary MOSFET output stage provides rock-solid power delivery, even under extreme loads. With THD+N figures below 0.005%, this amplifier preserves the finest musical details while handling demanding SPL applications with ease.
- Versatile Input & Crossover Architecture:
Three input options (RCA, High-Level, Optical) ensure seamless integration with any head unit, while the fully adjustable crossover system (24dB/octave) allows precise frequency management for optimal speaker performance. Whether running full-range speakers or dedicated subwoofers, the AA2D-3200 adapts to your system's needs.
- Intelligent Thermal Management:
The built-in thermal protection system continuously monitors operating conditions, automatically adjusting performance to prevent overheating. This ensures consistent power delivery during extended listening sessions or competition use.
- Compact Yet Powerful:
Despite its formidable power output, the AA2D-3200 features a space-efficient chassis designed for discreet installation. The low-profile design fits easily under seats or in tight trunk spaces without compromising performance or cooling efficiency.
- Comprehensive Protection Circuitry:
Multi-layered protection safeguards your investment against short circuits, DC offset, overload, and thermal runaway. The amplifier's robust design ensures long-term reliability in even the most demanding automotive environments.
