Digital Signal Processing

ALCHIMIST AD10H-750

Date of Manufacture: May 09, 2026

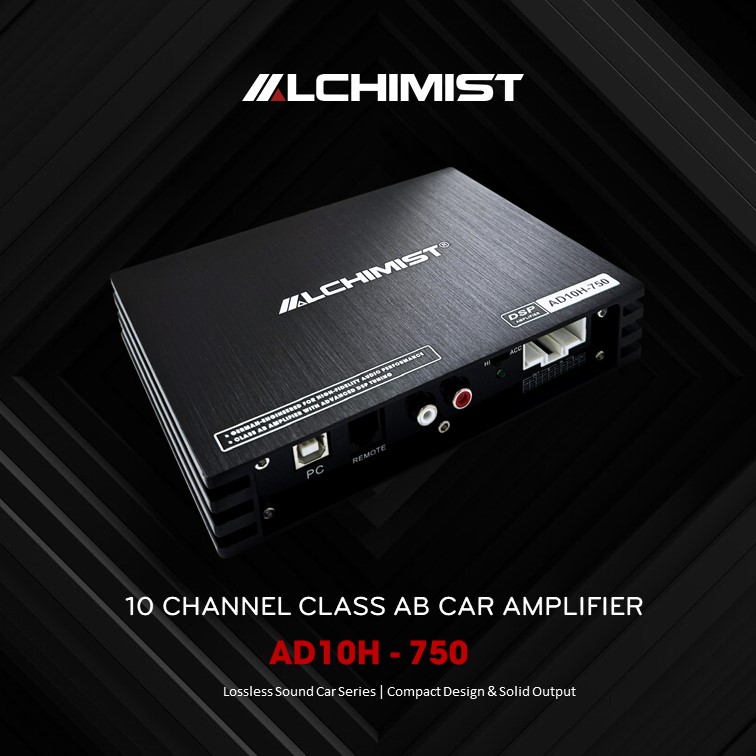

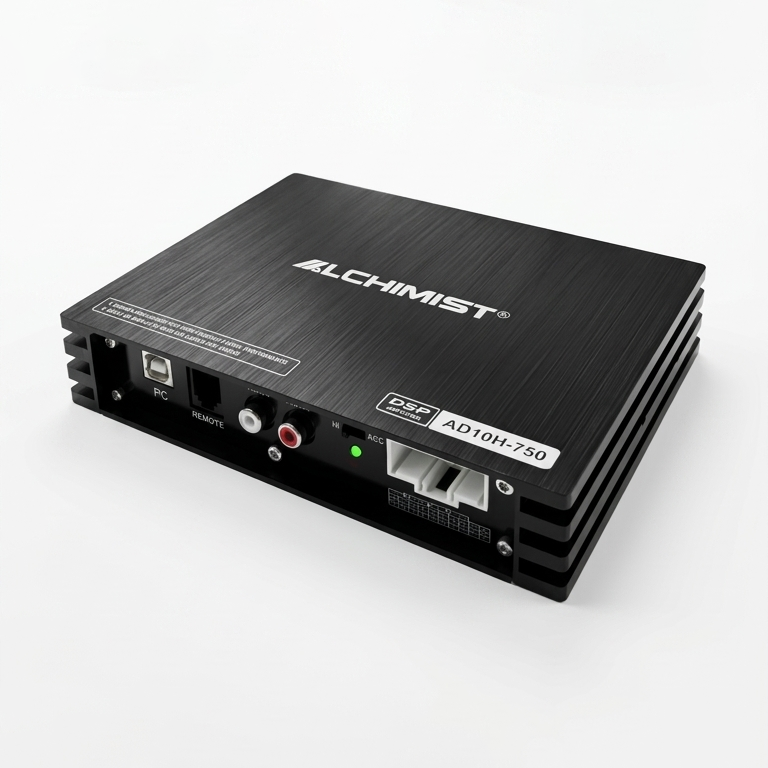

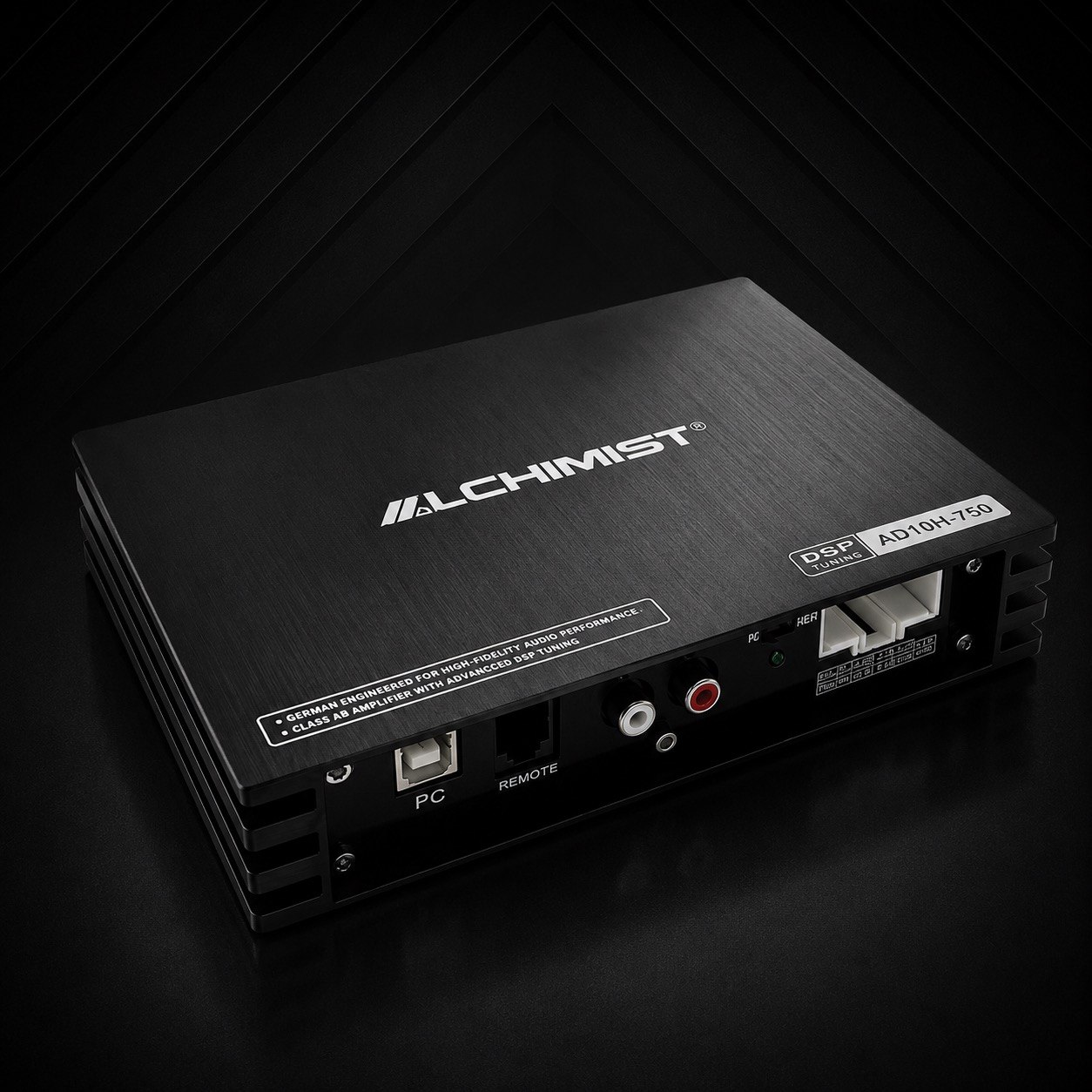

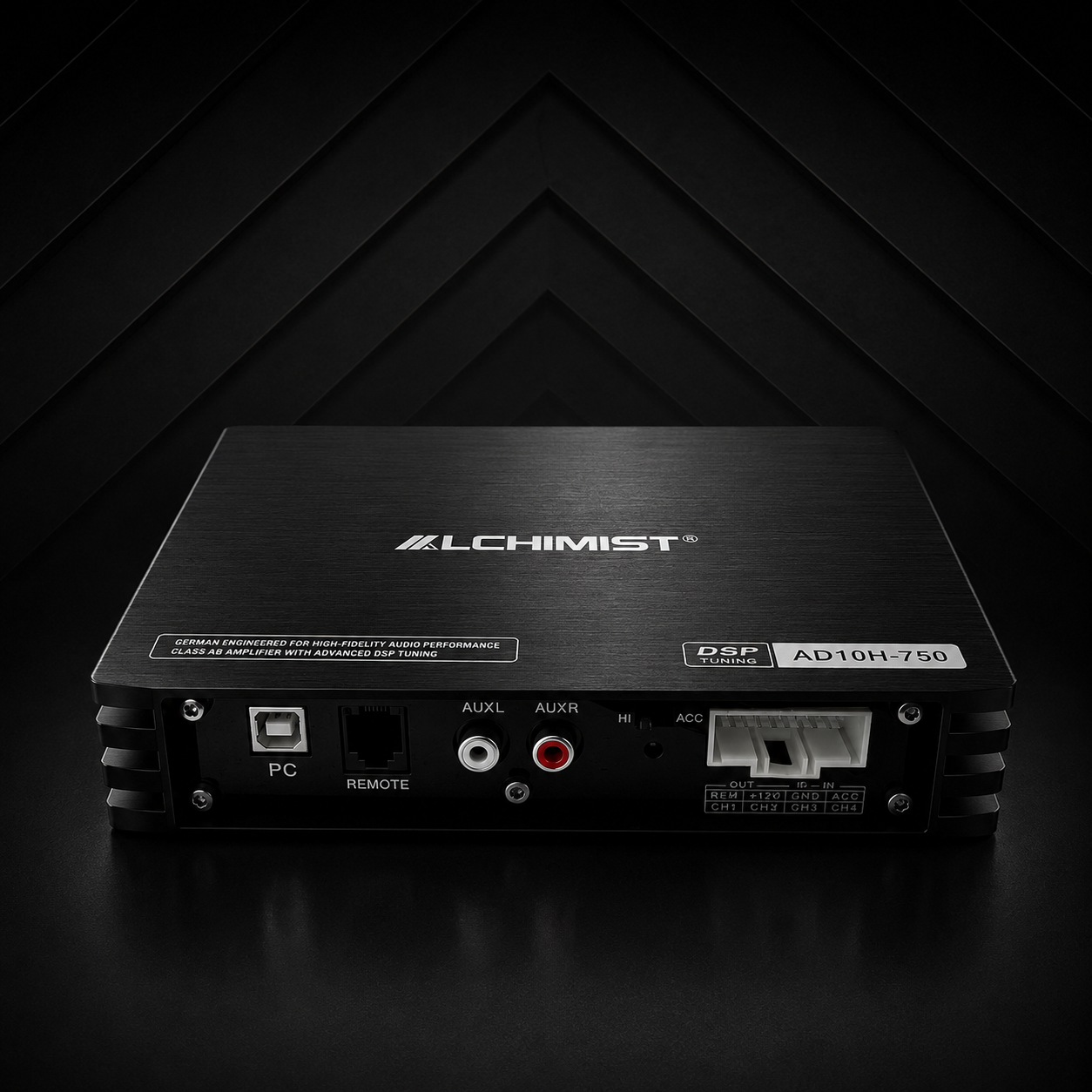

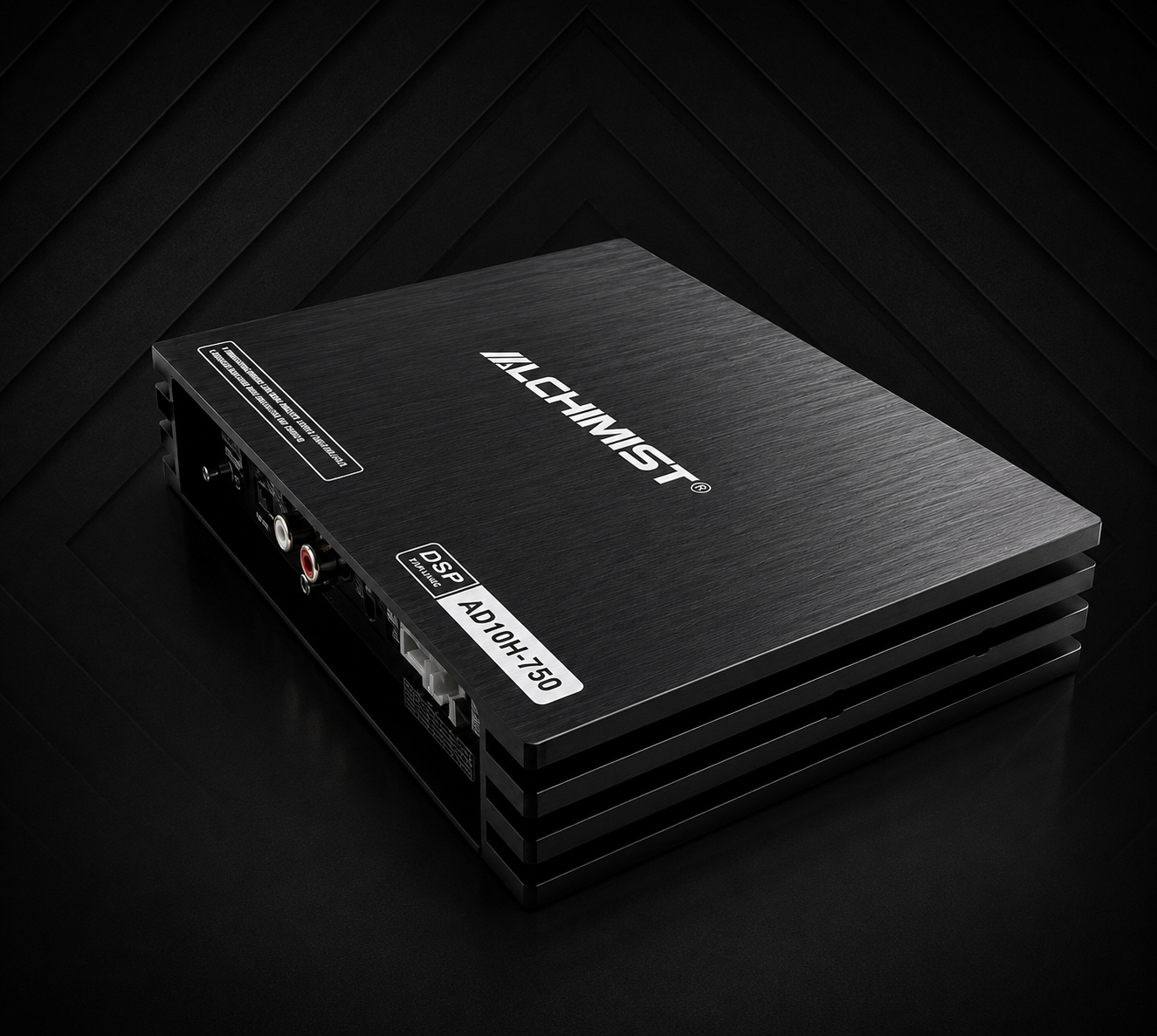

Alchimist AD10H-750 High-Resolution 10-Channel DSP Processor with 4-Channel Amplifier

ALCHIMIST AD10H-750

ALCHIMIST AD10H-700 DSP 10-Channel with Bluetooth 5.3 & Optical Ports.

Description

High-End 10-Channel DSP Processor with Bluetooth 5.3 Lossless and Optical Input

Powered by the upgraded A75 audio processing platform, the AD10H-750 delivers improved DSP performance, enhanced signal sensitivity, and optimized energy efficiency for a cleaner and more stable in-car audio experience.

This premium DSP system features:

10-channel architecture with 4 high-level amplified outputs and 6 RCA outputs
Integrated high-power Class AB amplifier design
Bluetooth 5.3 lossless audio transmission and optical digital input
Precision-tuned audio processing with reduced noise and improved dynamic response
Durable brushed aluminum alloy housing with exclusive blue LED accents

The redesigned software interface offers a more intuitive user experience, including split-screen tuning mode for faster and more convenient sound adjustment.

Details

High-End 10-Channel DSP Processor with Upgraded A75 Audio Platform

The Alchimist AD10H-750 is the upgraded evolution of the acclaimed AD10H-700, developed to deliver improved audio precision, enhanced processing efficiency, and greater system stability for modern car audio applications.

Powered by the new-generation A75 audio processing chipset, the AD10H-750 provides faster DSP computation, lower power consumption, and significantly improved signal sensitivity, effectively overcoming the limitations of the previous generation.

Designed for audiophiles and professional installers, the AD10H-750 combines powerful Class AB amplification with advanced digital audio processing to create a cleaner, more dynamic, and more immersive in-car listening experience.

Key Features

Upgraded A75 high-performance DSP audio processor
Enhanced signal sensitivity for improved low-level audio detection
Optimized power efficiency with reduced heat generation
Improved dynamic response and audio detail resolution
Enhanced system stability and lower background noise
10-channel DSP architecture with flexible tuning capability
4 high-level amplified outputs + 6 RCA line-level outputs
Premium Class AB amplifier design for warm and natural sound reproduction
Bluetooth 5.3 connectivity with high-quality wireless audio transmission
Optical digital input for lossless audio integration

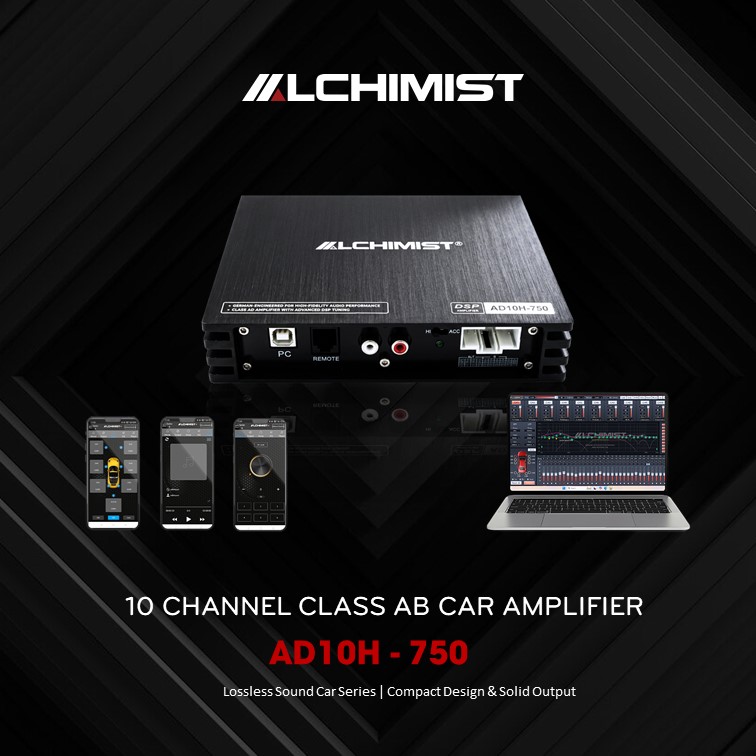

Advanced tuning software with professional split-screen adjustment interface
Durable brushed aluminum chassis with efficient thermal dissipation system

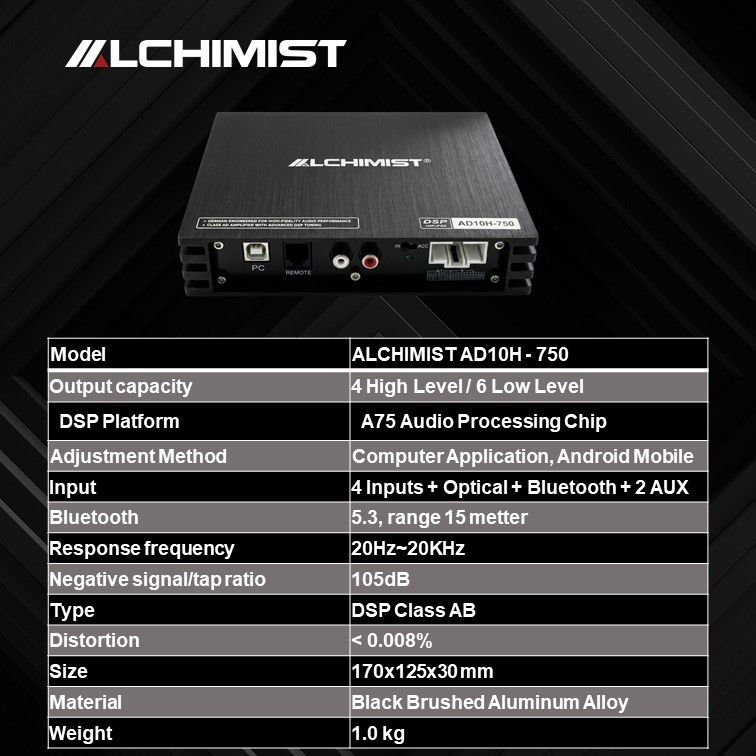

Technical Specifications

Specification	Details
DSP Platform	A75 Audio Processing Chip
Amplifier Type	High-End DSP Class AB
Channels	10 Channels
Output Configuration	4 High-Level Outputs + 6 RCA Line Outputs
Output Power	4 × 85W
Impedance	4Ω
Operating Voltage	10V ~ 15V
Frequency Response	20Hz ~ 20KHz
Signal-to-Noise Ratio	>95dB
Total Harmonic Distortion	<0.008%
EQ Bands	31-Band Professional EQ
Inputs	4 Inputs + Optical + Bluetooth + 2 AUX
Bluetooth Version	Bluetooth 5.3
Wireless Audio	High-Quality / Lossless Transmission
Startup Mode	ACC / Professional Intelligent Startup
Software Control	Adjustable via Alchimist DSP App
Optical Input	Supported
Bluetooth Range	Up to 15m

Physical Specifications

Specification	Details

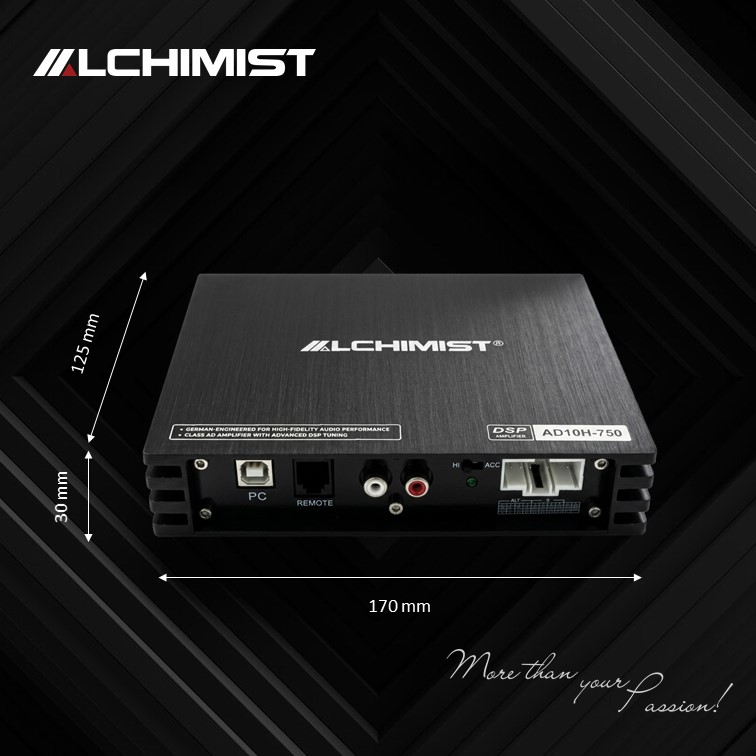

Dimensions	170mm × 125mm × 30mm
Weight	0.8kg (excluding packaging)
Housing Material	Black Brushed Aluminum Alloy
Cooling System	Advanced Heat Dissipation Design

Product Highlights

Compared to the AD10H-700, the new AD10H-750 offers:

Faster and more stable DSP processing
Lower operating temperature and improved energy efficiency
Higher signal sensitivity for better OEM integration
Cleaner background performance with reduced interference
More refined sound staging and vocal clarity
Improved overall reliability during long-term operation

Why upgrade Digital Signal Processing for your car?

Experience the Next Level of In-Car Audio Performance

The Alchimist AD10H-750 is designed to unlock the full potential of your vehicle’s sound system through advanced digital audio processing and high-efficiency amplification technology.

Factory audio systems often suffer from limited tuning capability, weak signal processing, and poor sound staging. With the upgraded A75 DSP platform, the AD10H-750 delivers dramatically improved audio clarity, better frequency balance, and more accurate sound reproduction across every channel.

Thanks to its enhanced signal sensitivity and refined DSP architecture, the AD10H-750 provides cleaner input detection and reduced background interference, resulting in more natural vocals, tighter bass response, and improved overall detail resolution.

The integrated high-power Class AB amplifier ensures warm, dynamic sound performance while maintaining excellent stability and energy efficiency during long listening sessions. Optimized power management and advanced thermal control also help reduce heat generation and improve long-term reliability.

With flexible 10-channel processing, professional 31-band equalization, and precise crossover control, users can fully customize the audio experience to match different speaker configurations and personal listening preferences.

Bluetooth 5.3 lossless connectivity and optical digital input provide seamless integration with modern audio sources, delivering high-quality wireless and digital audio transmission with minimal signal loss.

Combined with the redesigned tuning software and intuitive split-screen adjustment interface, the AD10H-750 makes professional-level sound tuning faster, easier, and more convenient than ever before.

Whether for daily driving or high-end car audio upgrades, the AD10H-750 transforms ordinary factory sound into a richer, cleaner, and more immersive listening experience.
