Description

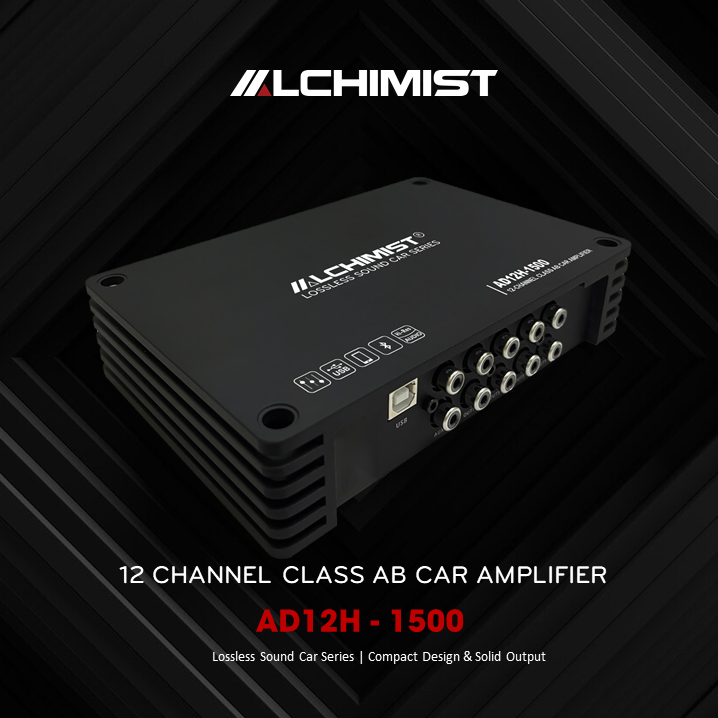

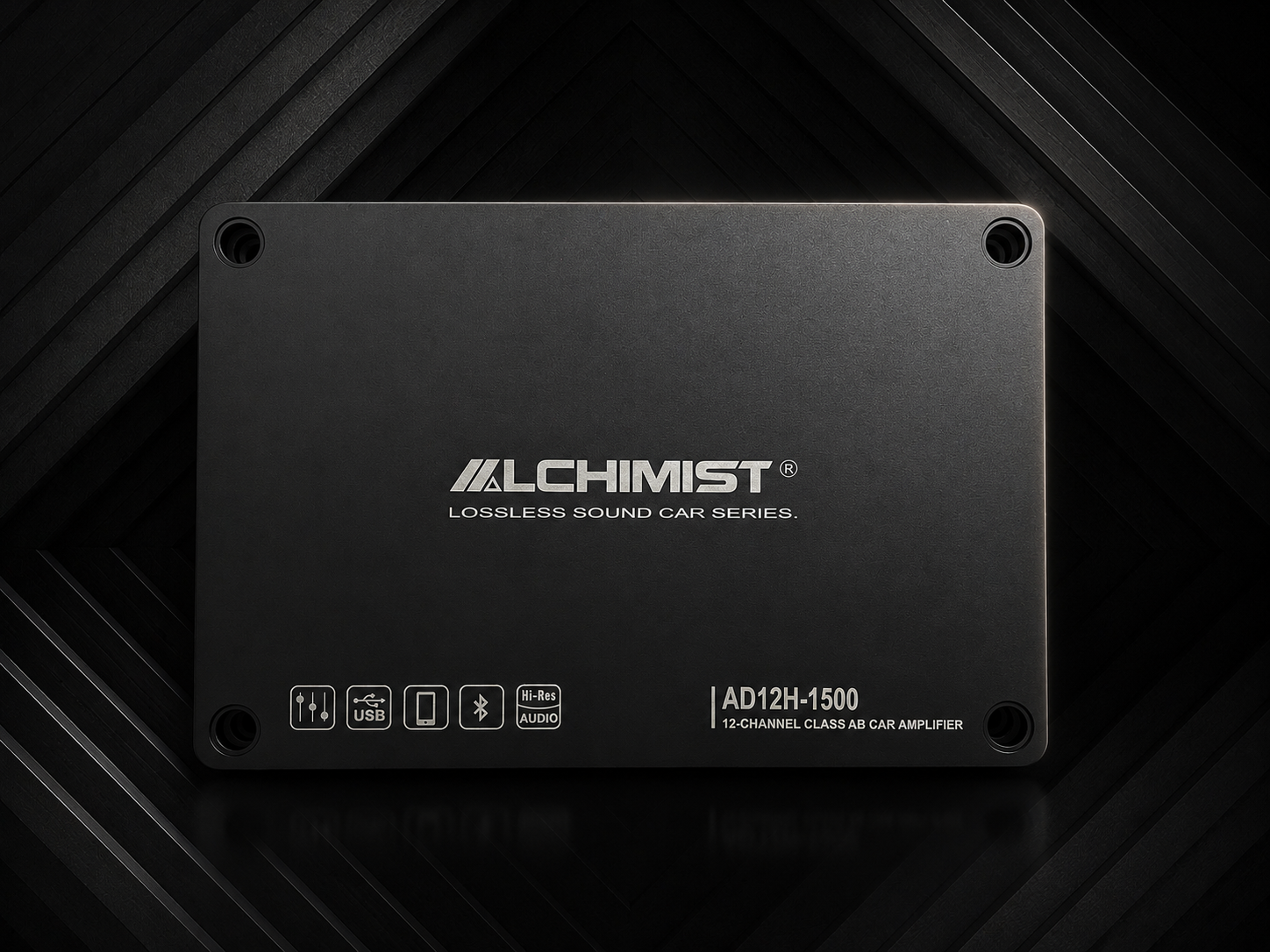

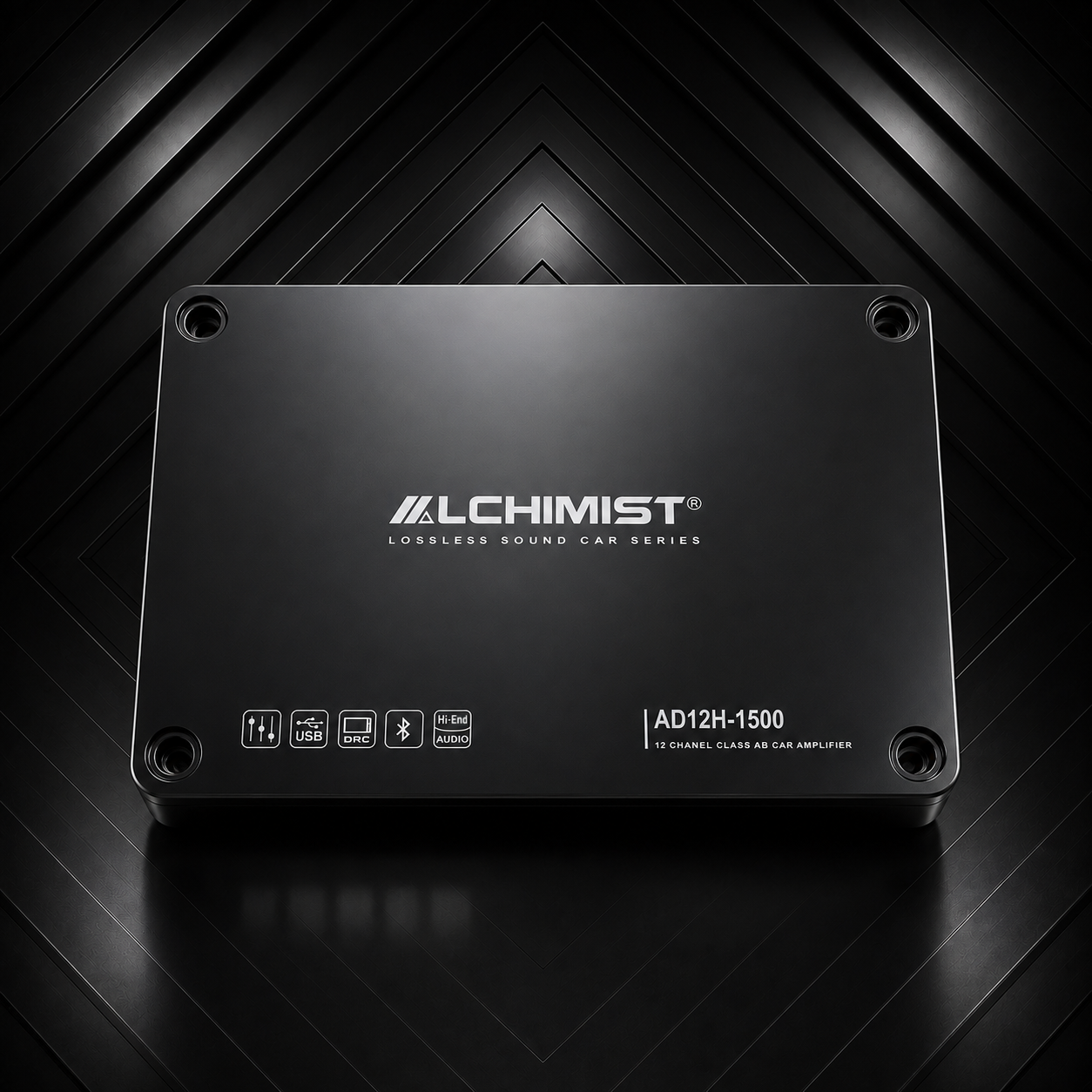

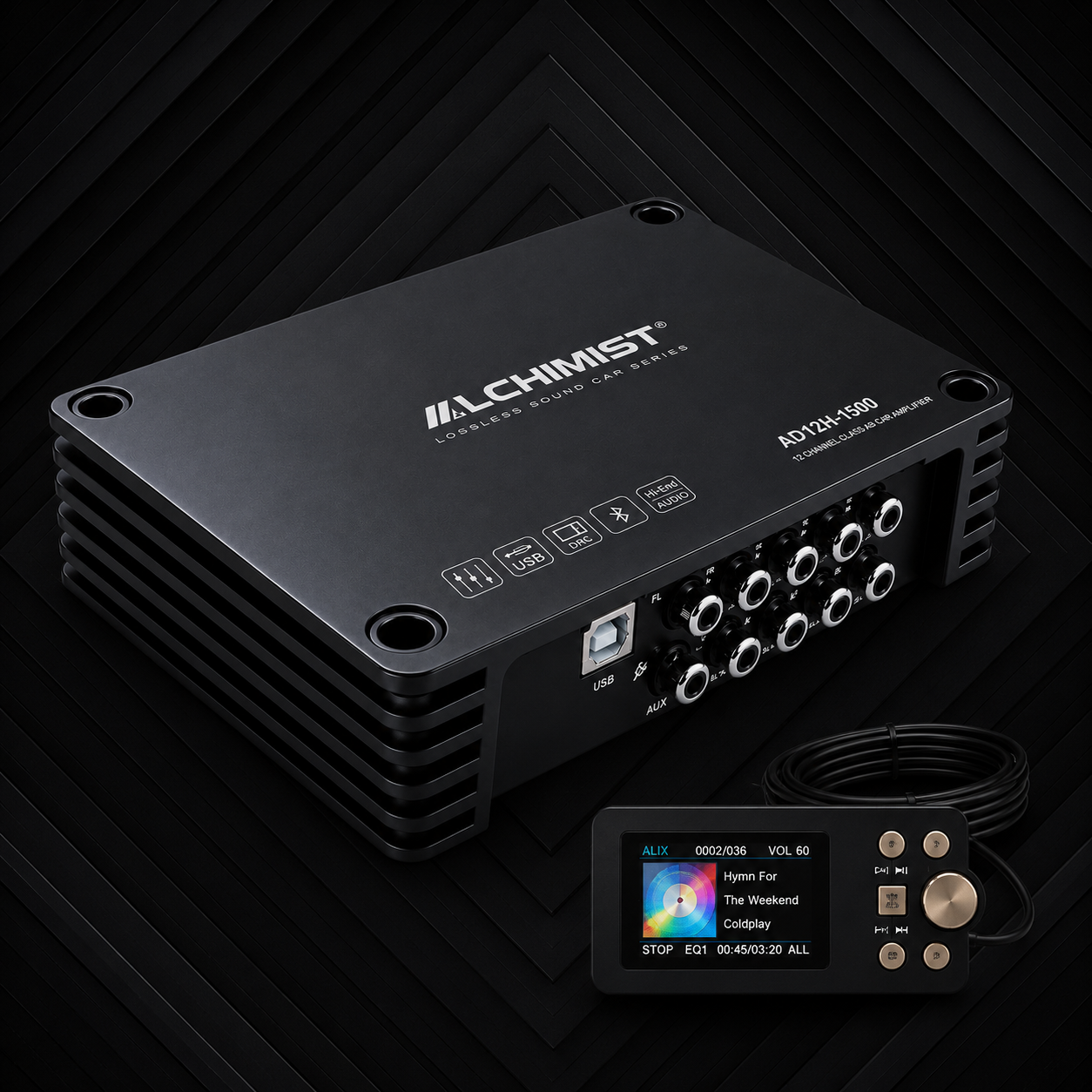

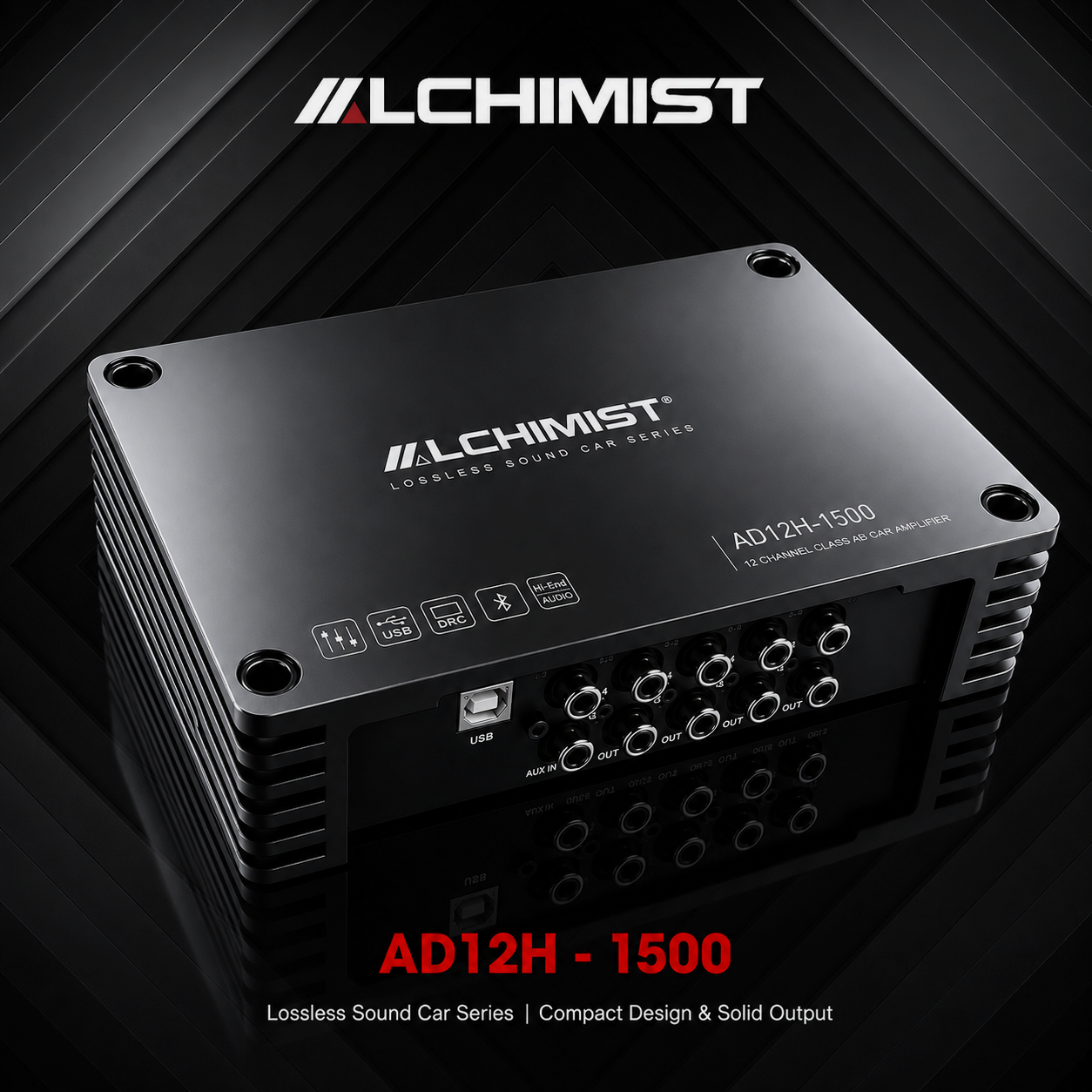

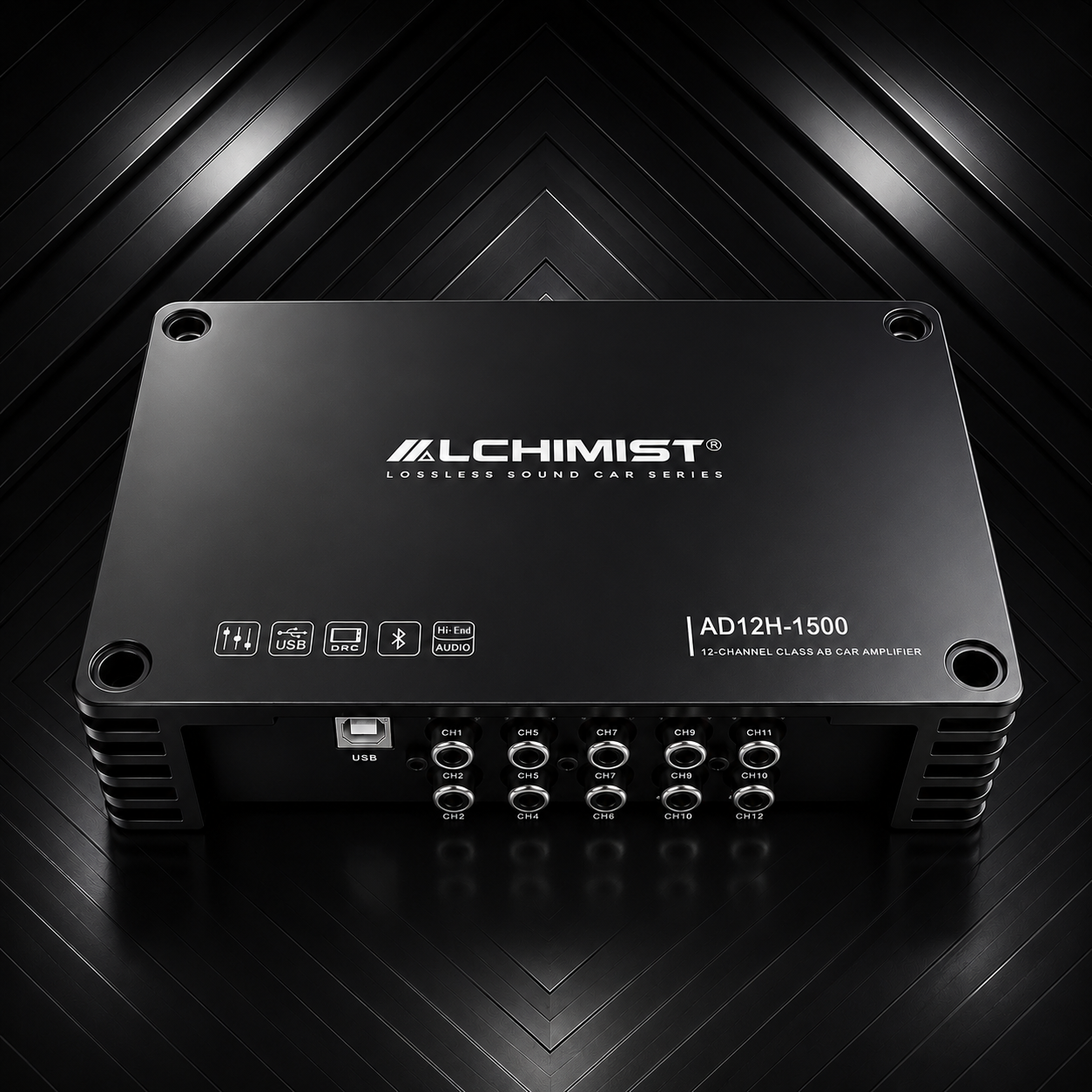

ALCHIMIST AD12H-1500 – Precision DSP Amplification for the Discerning Audiophile
Experience unparalleled control over your car audio system with the AD12H-1500, powered by the cutting-edge AD12PRO DSP engine. Designed for perfectionists and professional installers, this premium processor delivers a 12-output architecture—6 high-power amplifier channels for direct speaker drive and 6 full-range RCA pre-outs for seamless system expansion. Two DSP-controlled subwoofer outputs ensure razor-sharp low-frequency tuning, while real-time software adjustments let you fine-tune every detail.
Elevate your sound with Bluetooth 5.3 + APTX Lossless for wireless fidelity, optical digital input for pristine signal transfer, and high-level speaker inputs for factory system integration. The aluminum alloy chassis ensures superior heat dissipation, guaranteeing reliability even under demanding conditions.
From active front stages to competition-level builds, the AD12H-1500 delivers studio-grade processing, effortless flexibility, and audiophile-grade performance. Redefine your in-car audio—where precision meets power.
Details
Key Features
Advanced AD12PRO high-performance DSP processor

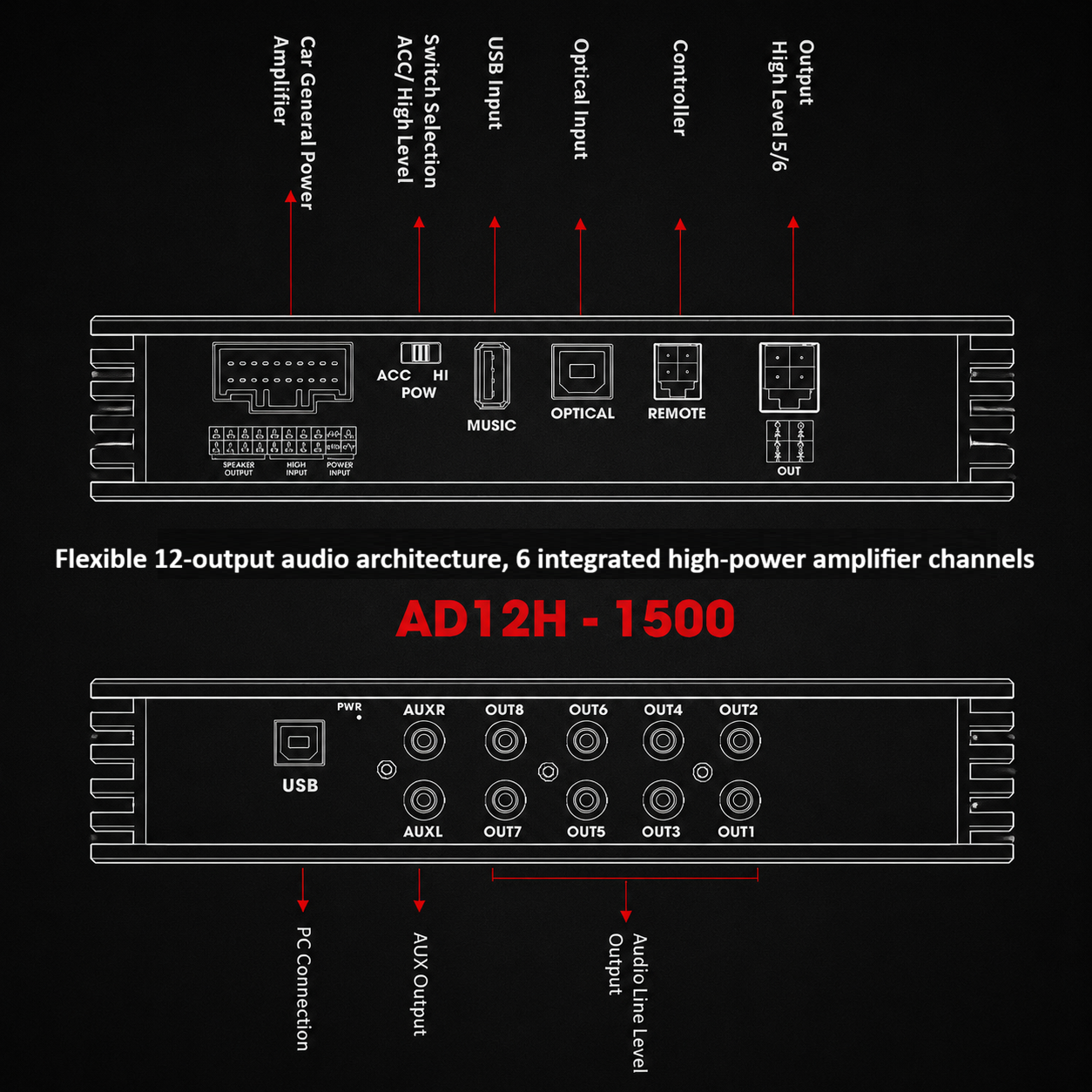

Flexible 12-output audio architecture
6 integrated high-power amplifier channels
6 full-range RCA pre-out channels
2 independent DSP-controlled RCA subwoofer outputs
Professional 31-band EQ tuning capability
Advanced crossover and time alignment controls

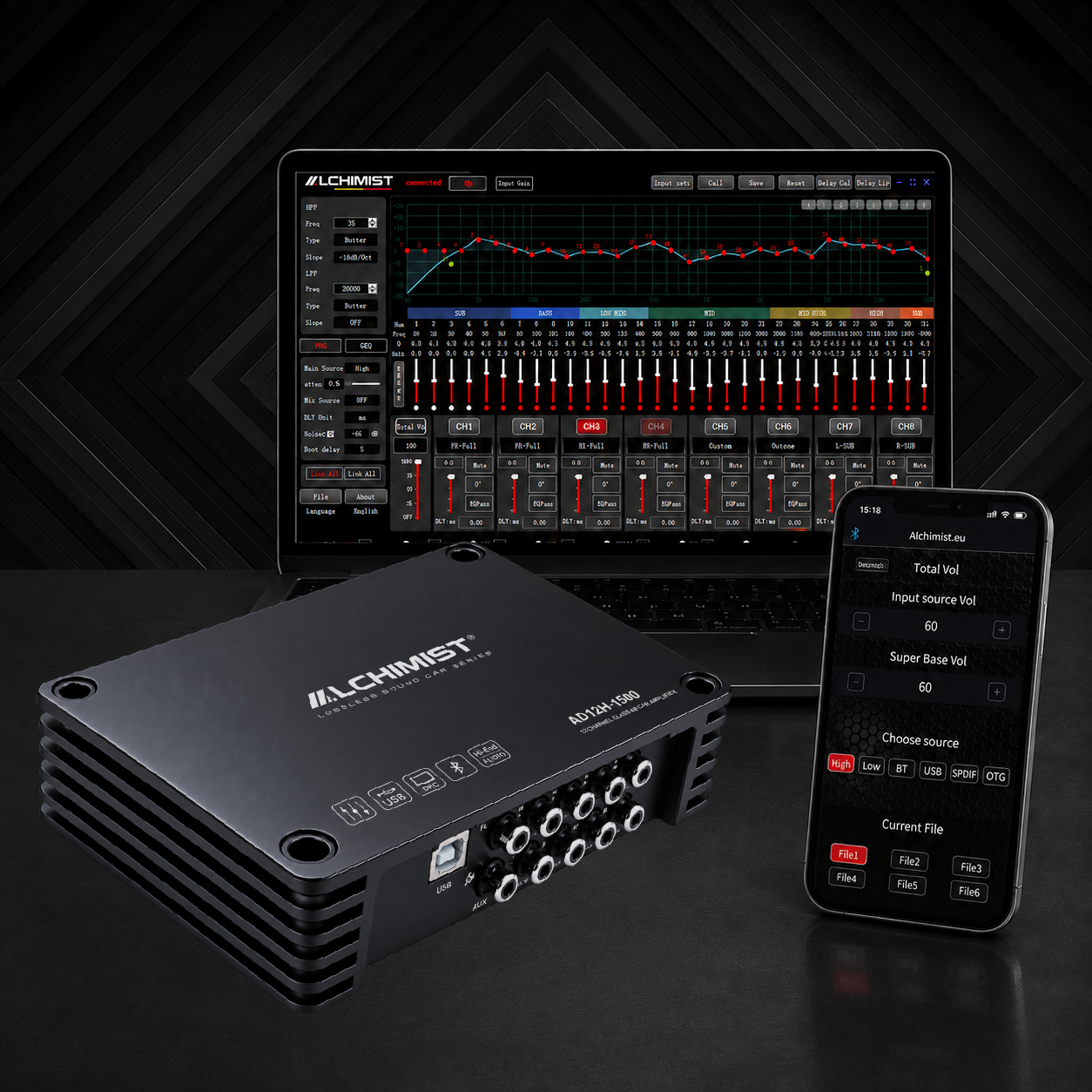

Real-time tuning via Mobile App and Windows PC software
Bluetooth 5.3 with APTX Lossless wireless audio streaming
Optical digital audio input for high-resolution sources
High-sensitivity output stage for enhanced dynamics and clarity

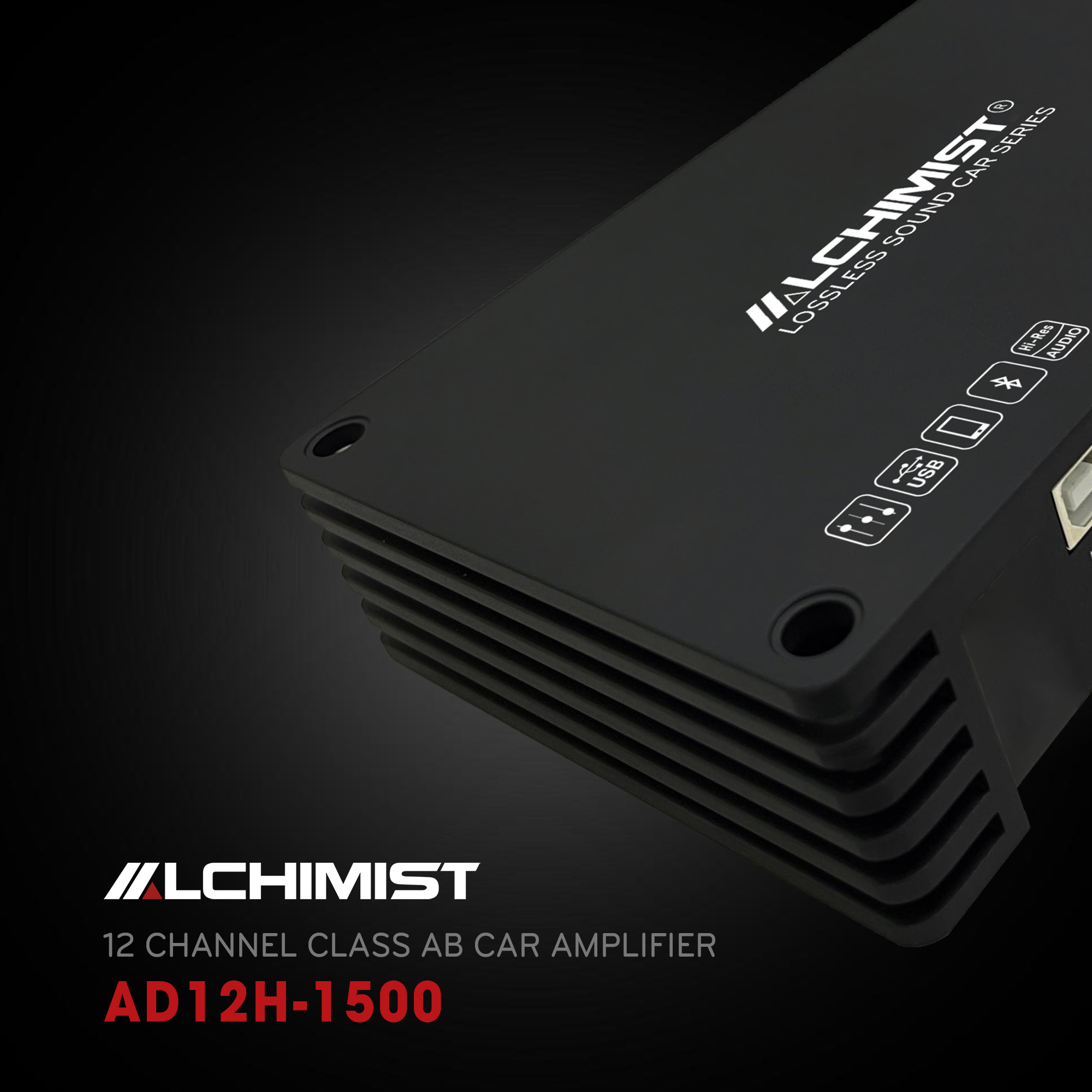

Premium aluminum alloy chassis with advanced heat dissipation
Signature blue LED illumination design

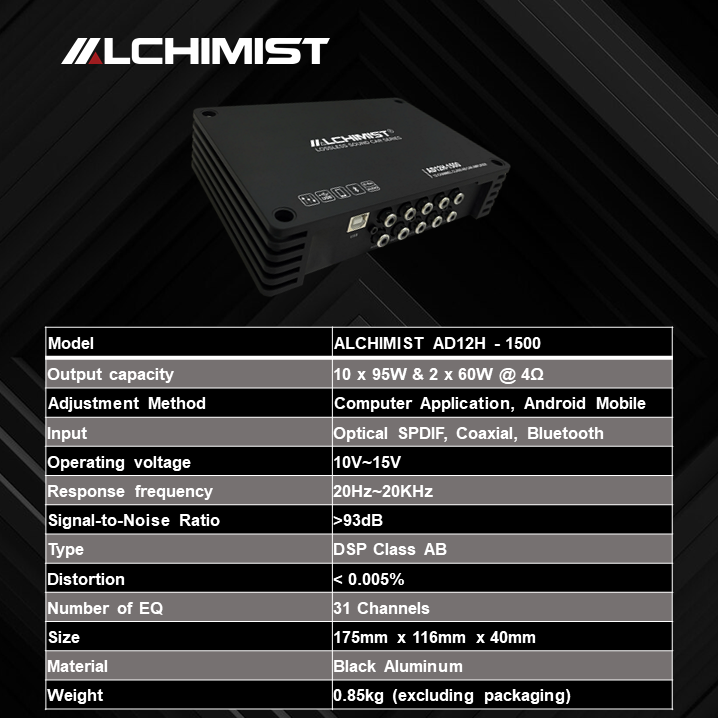

Technical Specifications
| Category | Specification |
|---|---|
| DSP Processor | AD12PRO High-Precision Audio DSP |
| DSP Channels | 8 Independent DSP Channels |
| Main Output Architecture | 12 Outputs (6 Speaker Outputs + 6 RCA Pre-Out Outputs) |
| Subwoofer Outputs | 2 Independent DSP-Controlled RCA Outputs |
| Total Physical Outputs | 14 Outputs |
| Amplifier Power | 6 × 95W @ 4Ω |
| Operating Voltage | 10V – 15V DC |
| Frequency Response | 20Hz – 20kHz |
| Signal-to-Noise Ratio | >93dB |
| Total Harmonic Distortion | <0.005% |
| Equalizer | 31-Band DSP Equalizer |

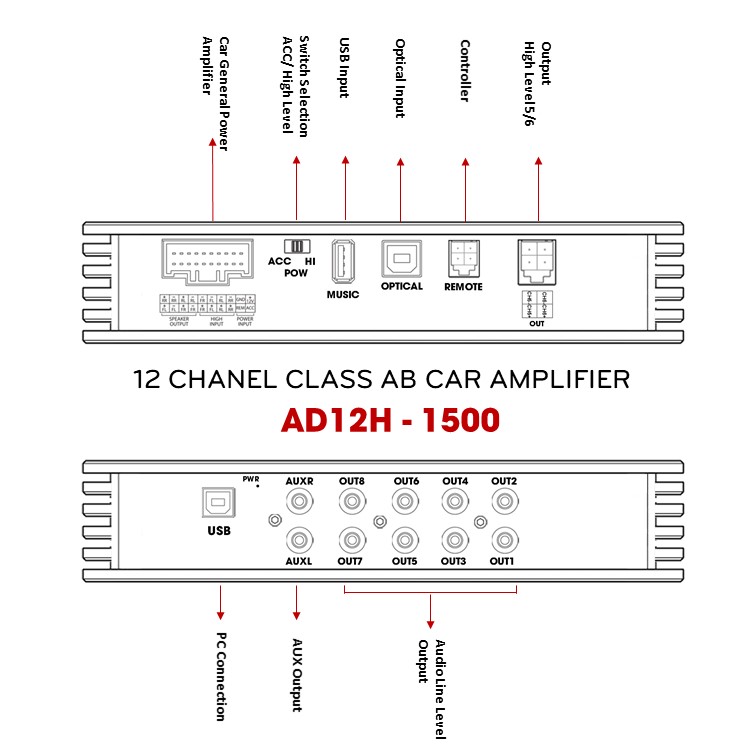

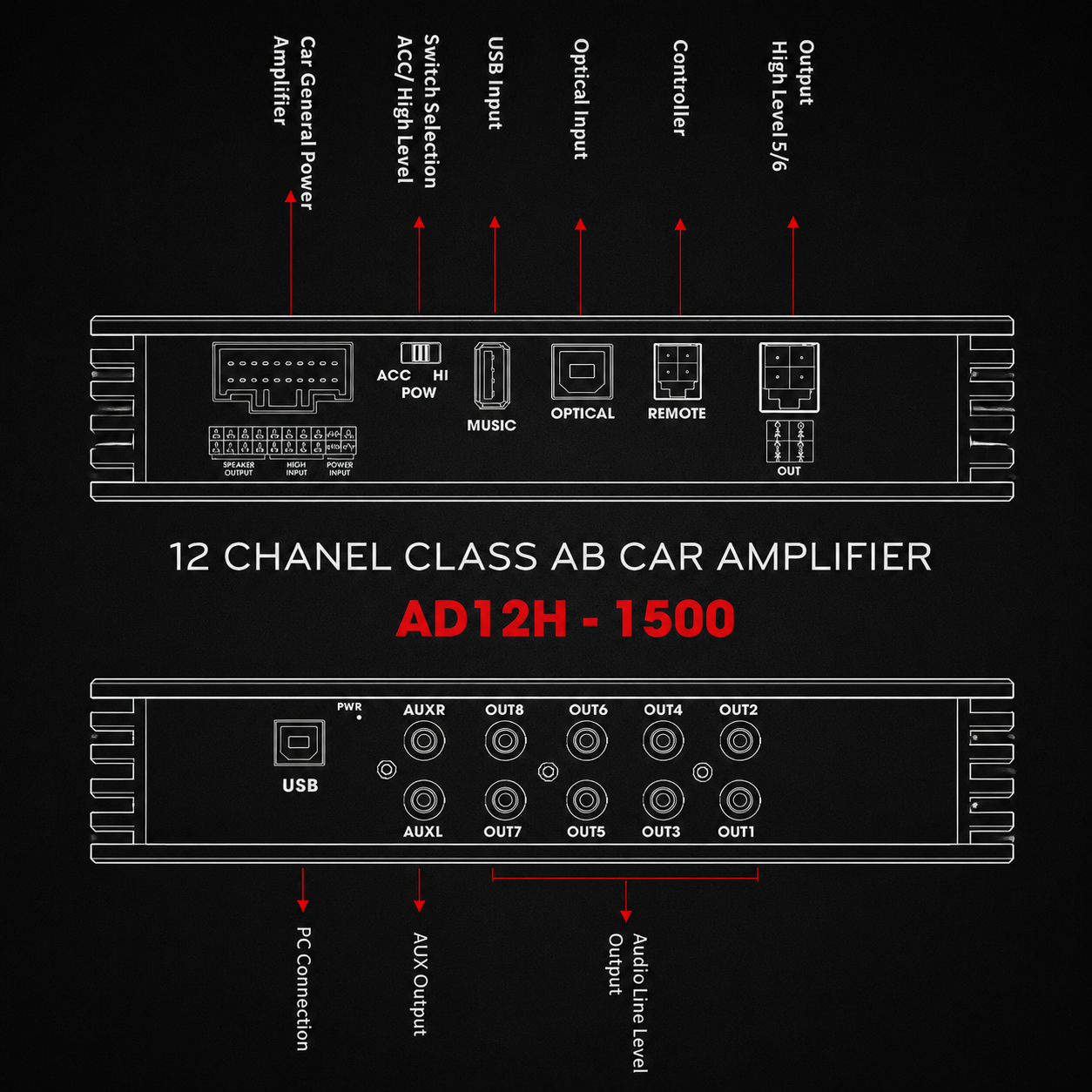

| Inputs | 4 High-Level Inputs, 2 AUX Inputs, Optical Input, Bluetooth Audio Input |
| Outputs | 6 Amplified Outputs, 6 RCA Pre-Out Outputs, 2 RCA Subwoofer Outputs |
| Startup Modes | ACC / Signal Sense |
| Bluetooth | Bluetooth 5.3 with APTX Lossless |
| Software Control | Mobile App & Windows PC Software |

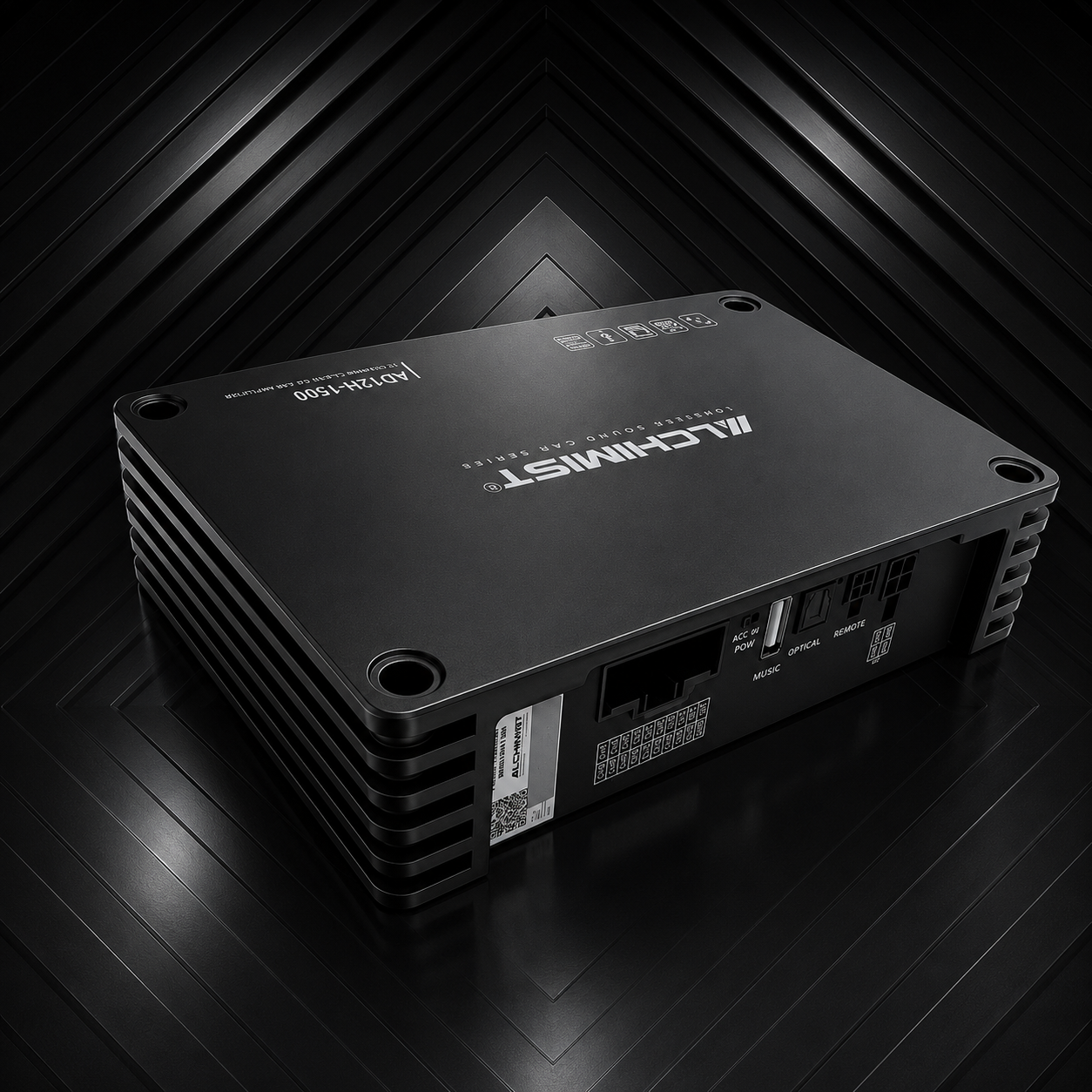

| Housing Material | CNC-Machined Aluminum Alloy |
| Dimensions | 175mm × 116mm × 40mm |
| Weight | 0.85kg |
Designed for Precision. Built for Performance.
Combining advanced DSP technology, powerful amplification, and flexible connectivity, the ALCHIMIST AD12H-1500 delivers professional-grade audio tuning in a compact and elegant package. From everyday listening to advanced competition-level installations, it provides the control, versatility, and performance expected from a modern high-end DSP amplifier.
